Automatski baterija elektrolit punjenje stroj

Automatic Battery Electrolyte Filling Machine
Automatic Battery Electrolyte Filling Machine

Automatski baterija elektrolit punjenje stroj

Model:TOB-BZDP-12ZZ
Ovaj stroj je uglavnom korišten za precise i kvantitativ tekućina ubrizgavanje prismatična napajanje baterija, s visoko tekućina ubrizgavanje učinkovitost, jednostavna operacija i dobra stabilnost. It je an važna oprema napredna tekućina in proces proizvodnja prismatična baterija.

Pošaljite upit

Čavrljaj sad

Uvod u proizvod

Automatski baterija elektrolit punjenje stroj prismatik ćelija

Proizvod Video

Specifikacija

1. Oprema uvod:

1.1 This machine is mainly used for precise and quantitative liquid injection of Prismatic power battery, with high liquid injection efficiency, simple operation and good stability. It is an important equipment for advanced liquid injection process in the production of prismatic power battery.

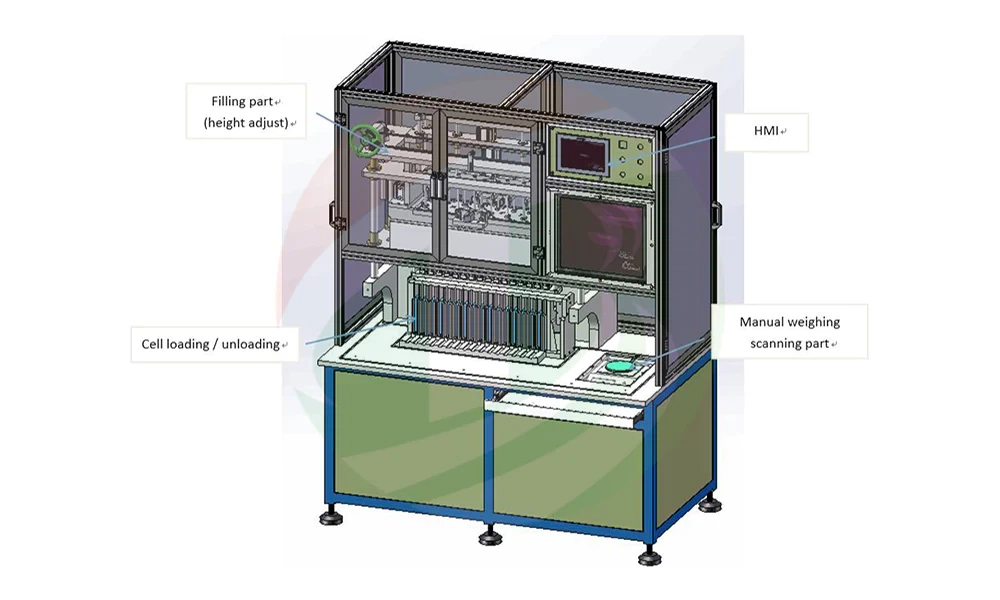

1.2 Work principle: The Machine Construction is with Battery Fixture, Liquid Injection mechanism, Operating System, Mechanical Transmission and other components.
It usvaja the apsorpcija mode of usisavanje first and then injecting liquid, manual loading and istovar, single person operation.

2. Tijek rada:

Vakuum/N2/Standing(vakuum, tlak održavanje vrijeme, standing time, and cycle times all can be set)

Automatic Battery Electrolyte Filling Machine

Ručno učitavanje→ učvršće auto fix ćelija → auto vakuum i punjenje → N2/standing ciklus →manual istovar→ Završi

3. Equipment Configuration: (We reserve the the right to change the electric brand without prior notice)
A PLC:Panasonic,
B HMI:MCGS
C Main pneumatic element: AIRTAC
D Senzor:SUNX
E Vakuum metar:Panasonic
F Punjenje pumpa:TOB
G The main core components are made of stainless steel 316 or related antikoroziv proces.
H Mehaničko Operacija područje je opremljeno sa zaštitna vrata i serija hitna zaustavljanje

Stavka	Indeks	Opis
Učinkovitost（max）	1PPM	Accord to cell size, capacity and filling količina.
Korištenje	Veći than or equal to 95 percent	Kontinuirano rad 24 sata
Punjenje točnost	±3‰	Use the case, filling one time for each filling port, sample one time, totally sample 20times for each filling port.
Postotak od prolaza	Veći od ili jednako to 99 posto	±3‰tolerance;
Ćelija veličina	Accord To Customer Drawing	Prikladno veličina:(Standard model) Visina : 150-210mm, Širina 70-135mm, debljina Manje than or equal to 30mm.
